RocketMQ整体部署与快速实战

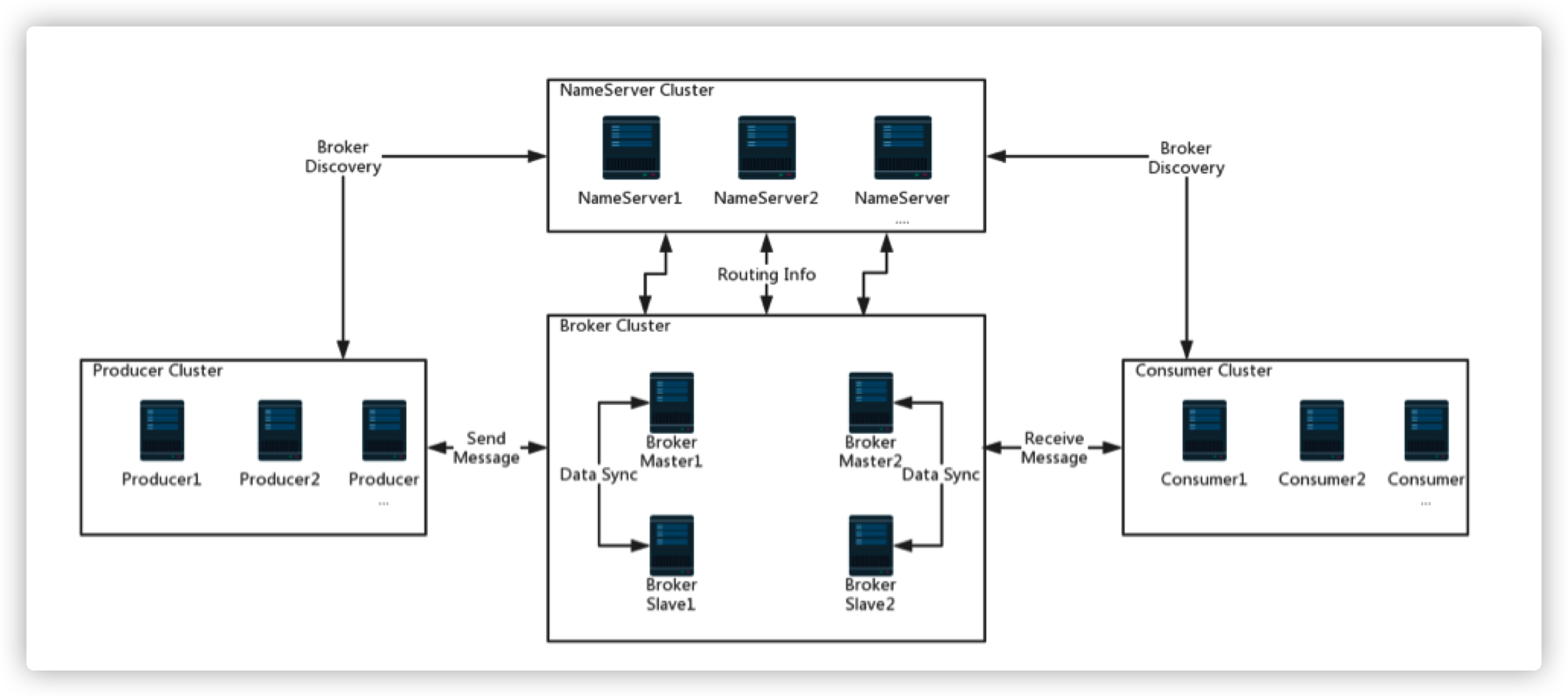

架构图

Apache RocketMQ是一个分布式消息传递和流媒体平台，具有低延迟，高性能和可靠性，万亿级容量和灵活的可伸缩性。它由四个部分组成：

nameserver，broker，生产者和使用者。它们中的每一个都可以水平扩展，而没有单个故障点。如上面的屏幕截图所示。
nameserver：提供轻量级的服务发现和路由。每个名称服务器记录完整的路由信息，提供相应的读写服务，并支持快速的存储扩展。
Broker：通过提供轻量级的TOPIC和QUEUE机制来存储消息。

1. RocketMQ部署

RocketMQ加入环境变量

vim /etc/profile

### profile
# java环境变量
export JAVA_HOME=/usr/local/jdk
export CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export PATH=$JAVA_HOME/bin:$PATH 4
# rocketmq目录
export ROCKETMQ_HOME=/usr/local/rocketmq/rocketmq‐all‐4.1.0‐incubating
export PATH=$ROCKETMQ_HOME/bin:$PATH

刷新环境变量

source /etc/profile

修改配置文件

vim /usr/local/rocketmq/conf/broker.conf

### broker.conf
# 集群名称，可自定义
brokerClusterName=DefaultCluster
brokerName=broker‐a
brokerId=0
# 定义服务地址，主存地址
namesrvAddr=192.168.241.198:9876
deleteWhen=04
fileReservedTime=48
brokerRole=ASYNC_MASTER
flushDiskType=ASYNC_FLUSH
autoCreateTopicEnable=true
# 消息存储根路径
storePathRootDir=/data/rocketmq/store
# 日志路径
storePathCommitLog=/data/rocketmq/store/commitlog

注

机器内存不够（一般针对虚拟机），需要修改JAVA_OPT关于内存的设置

runserver.sh

vim /usr/local/rocketmq/bin/runserver.sh

#!/bin/sh
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE‐2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#=======================================================================
# Java Environment Setting
#=======================================================================
error_exit ()
{
  echo "ERROR: $1 !!"
  exit 1
}

[ ! ‐e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! ‐e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! ‐e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME v ariable in your environment, We need java(x64)!"
export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}

#=======================================================================
# JVM Configuration
#=======================================================================
#修改此处的内存大小，默认为4g，一般我们的虚拟机内存不会太大
#所以此处修改为256m，可以根据自己机器的配置合理设置
JAVA_OPT="${JAVA_OPT} ‐server ‐Xms256m ‐Xmx256m ‐Xmn128m ‐XX:MetaspaceSi ze=64m ‐XX:MaxMetaspaceSize=128m"
JAVA_OPT="${JAVA_OPT} ‐XX:+UseConcMarkSweepGC ‐XX:+UseCMSCompactAtFullCo llection ‐XX:CMSInitiatingOccupancyFraction=70 ‐XX:+CMSParallelRemarkEnable d ‐XX:SoftRefLRUPolicyMSPerMB=0 ‐XX:+CMSClassUnloadingEnabled ‐XX:SurvivorR atio=8 ‐XX:‐UseParNewGC"
JAVA_OPT="${JAVA_OPT} ‐verbose:gc ‐Xloggc:/dev/shm/rmq_srv_gc.log ‐XX:+PrintGCDetails"
JAVA_OPT="${JAVA_OPT} ‐XX:‐OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT} ‐XX:‐UseLargePages"
JAVA_OPT="${JAVA_OPT} ‐Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DI R}/lib"

#JAVA_OPT="${JAVA_OPT} ‐Xdebug ‐Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} ‐cp ${CLASSPATH}"
$JAVA ${JAVA_OPT} $@

runbroker.sh

vim /usr/local/rocketmq/bin/runbroker.sh

#!/bin/sh
# Licensed to the Apache Software Foundation (ASF) under one or more
# contributor license agreements. See the NOTICE file distributed with
# this work for additional information regarding copyright ownership.
# The ASF licenses this file to You under the Apache License, Version 2.0
# (the "License"); you may not use this file except in compliance with
# the License. You may obtain a copy of the License at
#
# http://www.apache.org/licenses/LICENSE‐2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.
#=======================================================================
# Java Environment Setting
#=======================================================================
error_exit ()
{
  echo "ERROR: $1 !!"
  exit 1
}

[ ! ‐e "$JAVA_HOME/bin/java" ] && JAVA_HOME=$HOME/jdk/java
[ ! ‐e "$JAVA_HOME/bin/java" ] && JAVA_HOME=/usr/java
[ ! ‐e "$JAVA_HOME/bin/java" ] && error_exit "Please set the JAVA_HOME v ariable in your environment, We need java(x64)!"
export JAVA_HOME
export JAVA="$JAVA_HOME/bin/java"
export BASE_DIR=$(dirname $0)/..
export CLASSPATH=.:${BASE_DIR}/conf:${CLASSPATH}

#=======================================================================
# JVM Configuration
#=======================================================================
# 默认需要内存大小为8g
JAVA_OPT="${JAVA_OPT} ‐server ‐Xms256m ‐Xmx256m ‐Xmn128m"
JAVA_OPT="${JAVA_OPT} ‐XX:+UseG1GC ‐XX:G1HeapRegionSize=16m ‐XX:G1Reserv ePercent=25 ‐XX:InitiatingHeapOccupancyPercent=30 ‐XX:SoftRefLRUPolicyMSPer MB=0"
JAVA_OPT="${JAVA_OPT} ‐verbose:gc ‐Xloggc:/dev/shm/mq_gc_%p.log ‐XX:+Pri ntGCDetails ‐XX:+PrintGCDateStamps ‐XX:+PrintGCApplicationStoppedTime ‐XX:+ PrintAdaptiveSizePolicy"
JAVA_OPT="${JAVA_OPT} ‐XX:+UseGCLogFileRotation ‐XX:NumberOfGCLogFiles=5 ‐XX:GCLogFileSize=30m"
JAVA_OPT="${JAVA_OPT} ‐XX:‐OmitStackTraceInFastThrow"
JAVA_OPT="${JAVA_OPT} ‐XX:+AlwaysPreTouch"
JAVA_OPT="${JAVA_OPT} ‐XX:MaxDirectMemorySize=15g"
JAVA_OPT="${JAVA_OPT} ‐XX:‐UseLargePages ‐XX:‐UseBiasedLocking"
JAVA_OPT="${JAVA_OPT} ‐Djava.ext.dirs=${JAVA_HOME}/jre/lib/ext:${BASE_DI R}/lib"
#JAVA_OPT="${JAVA_OPT} ‐Xdebug ‐Xrunjdwp:transport=dt_socket,address=9555,server=y,suspend=n"
JAVA_OPT="${JAVA_OPT} ${JAVA_OPT_EXT}"
JAVA_OPT="${JAVA_OPT} ‐cp ${CLASSPATH}"

numactl ‐‐interleave=all pwd > /dev/null 2>&1
if [ $? ‐eq 0 ] then
    if [ ‐z "$RMQ_NUMA_NODE" ] ; then
        numactl ‐‐interleave=all $JAVA ${JAVA_OPT} $@
    else
        numactl AVA_OPT} $@ ‐‐cpunodebind=$RMQ_NUMA_NODE ‐‐membind=$RMQ_NUMA_NODE $JAVA ${JAVA_OPT} $@
    fi
else
    $JAVA ${JAVA_OPT} $@
fi

假设我们的IP是：192.168.241.198，修改配置文件

vim broker.conf

### 加上
brokerIP1=192.168.241.198

运行服务namesrv，需在 $ROCKETMQ_HOME/bin 下执行

nohup sh bin/mqnamesrv ‐n 192.168.241.198:9876 &

启动broker，需在 $ROCKETMQ_HOME/bin下执行

# 不指定启动配置文件
nohup sh bin/mqbroker ‐n 192.168.241.198:9876 autoCreateTopicEnable=true &

# 指定启动配置配置文件
# 192.168.241.198:9876为nameserver，链接进行注册，autoCreateTopicEnable=true(允许创建topic)
nohup sh bin/mqbroker & ‐n 192.168.241.198:9876 ‐c conf/broker.conf autoCreateTopicEnable=true

# 查看broker启动配置：
sh bin/mqbroker ‐m

关闭防火墙

客户端访问可能会出现的问题：RemotingTooMuchRequestException: sendDefaultImpl call timeout。在客户端运行Producer时，可能会出现如上异常，这是因为从 Windows 上开发连接虚拟机中的 nameServer 时要经过 Linux 系统的防火墙，而防火墙一般都会有超时的机制，在网络连接长时间不传输数据时，会关闭这个 TCP 的会话，关闭后再读写，就有可能导致这个异常。

# 停止firewall
systemctl stop firewalld.service
# 禁止firewall开机启动
systemctl disable firewalld.service
# 查看默认防火墙状态（关闭后显示notrunning，开启后显示running）
firewall‐cmd ‐‐state

broker.conf配置如下

# rocketmq‐name服务地址，多个地址用;分开，不配置默认为localhost:9876
namesrvAddr = 192.168.241.198:9876
brokerClusterName = DefaultCluster
brokerName = broker‐a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48

# 主从角色SYNC_MASTER,ASYNC_MASTER,SLAVE
brokerRole = SYNC_MASTER
flushDiskType = ASYNC_FLUSH

# 允许自动创建主题topic
autoCreateTopicEnable=true

#broker监听端口
listenPort=10911

# 数据存储位置
storePathRootDir=/root/rocketmq/store

关闭命令

### 方案一：正常退出
# 关闭broker
sh mqshutdown broker
# 关闭namesrv
sh mqshutdown namesrv

### 方案二：杀掉进程
# 查看pid(进程号)
ps ‐ef|grep rocketmq
kill ‐9 pid

2. RocketMQ多机集群部署

准备2个虚拟机分别是虚拟机centos-node-01与centos-node-02，分别部署2个NameServer，并在每台机器上分别启动一个Master和一个Slave，互为主备，在主目录下的conf文件夹下提供了多种broker配置模式，分别有：2m-2s-async，2m-2s-sync，2m-noslave，可以以此为模版做如下配置：

cd /${conf目录}
cp broker.conf broker-m.conf
cp broker.conf broker-s.conf

配置192.168.241.198 Master和Slave

Master broker-m.conf 配置：

# rocketmq‐name服务地址，多个地址用;分开，不配置默认为localhost:9876
namesrvAddr = 192.168.241.198:9876;192.168.241.199:9876
# 可以配置成自己需要的名称
brokerClusterName = DefaultCluster
brokerName = broker‐b
# 0表示主节点
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
# 当前节点角色
brokerRole = SYNC_MASTER
flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable = true
#broker通信端口，默认端口
listenPort=10911
storePathRootDir=/root/rocketmq/store‐m

Slave broker-s.conf 配置：

# rocketmq‐name 服务地址，多个地址用;分开，不配置默认为localhost:9876
namesrvAddr = 192.168.241.198:9876;192.168.241.199:9876
# 可以配置成自己需要的名称
brokerClusterName = DefaultCluster
brokerName = broker‐b
# 非0表示从节点
brokerId = 1
deleteWhen = 04
fileReservedTime = 48
# 当前节点角色
brokerRole = SLAVE
flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable=true
# broker通信端口
listenPort=10811
storePathRootDir=/root/rocketmq/store‐s

启动mqnamesrv

nohup sh mqnamesrv &

启动broker Master

# 到rocketmq根目录执行命令
cd /${ROCKETMQ_ROOT}
nohup sh bin/mqbroker ‐c conf/broker‐m.conf &

启动broker Slave

# 到rocketmq根目录执行命令
cd /${ROCKETMQ_ROOT}
nohup sh bin/mqbroker ‐c conf/broker‐s.conf &

配置192.168.241.199 Master和Slave

Master broker-m.conf 配置：

namesrvAddr = 192.168.241.198:9876;192.168.241.199:9876
# 可以配置成自己需要的名称
brokerClusterName = DefaultCluster
brokerName = broker‐a
brokerId = 0
deleteWhen = 04
fileReservedTime = 48
brokerRole = SYNC_MASTER
flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable=true
listenPort=10911
storePathRootDir=/root/rocketmq/store‐m

slave broker-s.conf 配置：

namesrvAddr = 192.168.241.198:9876;192.168.241.199:9876
# 可以配置成自己需要的名称
brokerClusterName = DefaultCluster
brokerName = broker‐a
brokerId = 1
deleteWhen = 04
fileReservedTime = 48
brokerRole = SLAVE
flushDiskType = ASYNC_FLUSH
autoCreateTopicEnable=true
listenPort=10811
storePathRootDir=/root/rocketmq/store‐s

启动mqnamesrv 与 mqbroker 启动流程同上。

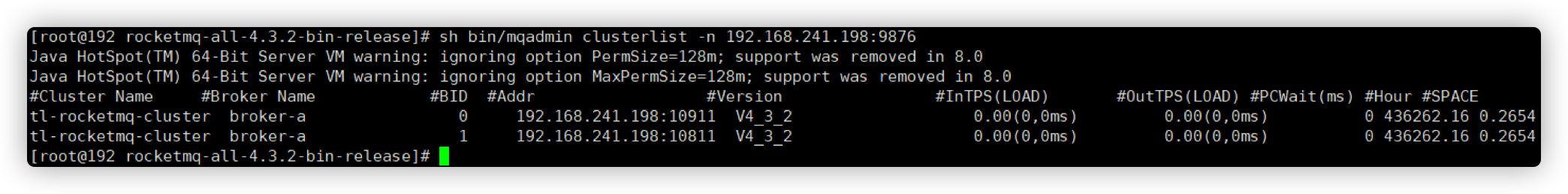

集群启动后，查看集群监控状态

sh mqadmin clusterlist ‐n 192.168.241.198:9876

测试

export NAMESRV_ADDR=192.168.241.198:9876;192.168.241.199:9876

# 测试发送端
sh bin/tools.sh org.apache.rocketmq.example.quickstart.Producer

# 测试消费端
sh bin/tools.sh org.apache.rocketmq.example.quickstart.Consumer

配置说明

1.namesrvAddr
NameServer地址，可以配置多个，用逗号分隔；

2.brokerClusterName
所属集群名称，如果节点较多可以配置多个

3.brokerName
broker名称，master和slave使用相同的名称，表明他们的主从关系

4.brokerId
0表示Master，大于0表示不同的slave

5.deleteWhen
表示几点做消息删除动作，默认是凌晨4点

6.fileReservedTime
在磁盘上保留消息的时长，单位是小时

7.brokerRole
有三个值：SYNC_MASTER，ASYNC_MASTER，SLAVE；同步和异步表示Master和Slave之间 同步数据的机制；

8.flushDiskType
刷盘策略，取值为：ASYNC_FLUSH，SYNC_FLUSH表示同步刷盘和异步刷盘；SYNC_FLUSH消 息写入磁盘后才返回成功状态，ASYNC_FLUSH不需要；

9.listenPort
启动监听的端口号

10.storePathRootDir
存储消息的根目录

3. Docker多机集群部署

假设有2台服务器，IP分别为 10.211.55.9 和 10.211.55.10

3.1 编译镜像

下载源码，并将源码复制到2台服务器上

下载地址：https://github.com/apache/rocketmq-docker
进入源码文件夹

cd /${PATH_TO_SOURCE}/image-build

编译镜像

# 此处选择的是RocketMQ版本号为4.5.0，并且基于centos镜像进行编译
./build-image.sh 4.5.0 centos

注意

查看Dockerfile-centos文件的第50行可以看到，默认是从apache主站进行下载，如果下载速度慢，可以将下载地址改为清华镜像：
https://mirrors.tuna.tsinghua.edu.cn/apache/rocketmq/${ROCKETMQ_VERSION}/rocketmq-all-${ROCKETMQ_VERSION}-bin-release.zip

查看镜像

docker image ls

# 可以看到 apacherocketmq/rocketma:4.5.0 镜像

3.2 配置文件

下面以 10.211.55.9 服务器的配置文件为例：

docker-compose.yml

其中的name server地址需要填写宿主机的IP，而不是docker容器的IP

version: '3.5'
services:
  rmq-ns:
    image: apacherocketmq/rocketmq:4.5.0
    container_name: rmq-ns
    ports:
      - 9876:9876
    volumes:
      - /etc/localtime:/etc/localtime
      - /usr/local/tyrival/rocketmq/logs/nameserver:/opt/logs
      - /usr/local/tyrival/rocketmq/store/nameserver:/opt/store
    command: sh mqnamesrv
    networks:
        rmq:
          aliases:
            - rmq-ns

  rmq-broker-m:
    image: apacherocketmq/rocketmq:4.5.0
    container_name: rmq-broker-m
    ports:
      - 10911:10911
    volumes:
      - /etc/localtime:/etc/localtime
      - /usr/local/tyrival/rocketmq/logs/broker-1:/opt/logs
      - /usr/local/tyrival/rocketmq/store/broker-1:/opt/store
      - /usr/local/tyrival/rocketmq/conf/broker-1.conf:/opt/rocketmq-4.5.0/conf/broker.conf
    environment:
        TZ: Asia/Shanghai
        NAMESRV_ADDR: "10.211.55.9:9876;10.211.55.10:9876"
        JAVA_OPTS: " -Duser.home=/opt"
        JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /opt/rocketmq-4.5.0/conf/broker.conf autoCreateTopicEnable=true &
    links:
      - rmq-ns:rmq-ns
    networks:
      rmq:
        aliases:
          - rmq-broker-m

  rmq-broker-s:
    image: apacherocketmq/rocketmq:4.5.0
    container_name: rmq-broker-s
    ports:
      - 10909:10909
    volumes:
      - /etc/localtime:/etc/localtime
      - /usr/local/tyrival/rocketmq/logs/broker-2:/opt/logs
      - /usr/local/tyrival/rocketmq/store/broker-2:/opt/store
      - /usr/local/tyrival/rocketmq/conf/broker-2.conf:/opt/rocketmq-4.5.0/conf/broker.conf
    environment:
        TZ: Asia/Shanghai
        NAMESRV_ADDR: "10.211.55.9:9876;10.211.55.10:9876"
        JAVA_OPTS: " -Duser.home=/opt"
        JAVA_OPT_EXT: "-server -Xms256m -Xmx256m -Xmn256m"
    command: sh mqbroker -c /opt/rocketmq-4.5.0/conf/broker.conf autoCreateTopicEnable=true &
    links:
      - rmq-ns:rmq-ns
    networks:
      rmq:
        aliases:
          - rmq-broker-s

  rmq-console:
    image: styletang/rocketmq-console-ng
    container_name: rmq-console
    ports:
      - 10900:8080
    environment:
        JAVA_OPTS: -Drocketmq.namesrv.addr=10.211.55.9:9876;10.211.55.10:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false
    networks:
      rmq:
        aliases:
          - rmq-console
networks:
  rmq:
    name: rmq
    driver: bridge

注意

可以看到除了配置rocketmq容器外，还配置了基于镜像 styletang/rocketmq-console-ng 的 rmq-console 容器，这是一个rocketmq的集群管理应用。

broker-1.conf

# 集群名称
brokerClusterName = rocketmq-cluster
# broke名
brokerName = broker-a-master
# master用0，slave用其他
brokerId = 0
# 这里要写宿主机的IP，否则rocketmq会自动获取docker容器IP
brokerIP1 = 10.211.55.9
# 清理时机
deleteWhen = 04
# 文件保留48小时
fileReservedTime = 48
# 同步模式
# -SYNC_MASTER 同步双写
# -ASYNC_MASTER 异步复制
# -SLAVE
brokerRole = SYNC_MASTER
# 刷盘模式
# -SYNC_FLUSH 同步刷盘
# -ASYNC_FLUSH 异步刷盘
flushDiskType = SYNC_FLUSH
# NamsServer地址
namesrvAddr = 10.211.55.9:9876;10.211.55.10:9876
# 允许自动创建topic
autoCreateTopicEnable = true
# broker对外服务的监听端口
listenPort = 10911

broker-2.conf

brokerClusterName = rocketmq-cluster
brokerName = broker-b-slave
brokerId = 1
brokerIP1 = 10.211.55.9
deleteWhen = 04
fileReservedTime = 48
brokerRole = SLAVE
flushDiskType = SYNC_FLUSH
namesrvAddr = 10.211.55.9:9876;10.211.55.10:9876
autoCreateTopicEnable = true
listenPort = 10909

注意

10.211.55.10 服务器上，需要对2个broke.conf文件进行修改，将其中的 brokerIP1 修改为 0.211.55.10。

3.3 启动集群

启动集群

启动时会自动下载 styletang/rocketmq-console-ng 镜像。

docker-compose up -d

查看集群

浏览器访问：http://10.211.55.9:10900 ，可以看到 rmq-console 提供的集群管理页面，通过此站点可以监控集群状态。

23 RocketMQ整体部署与快速实战
